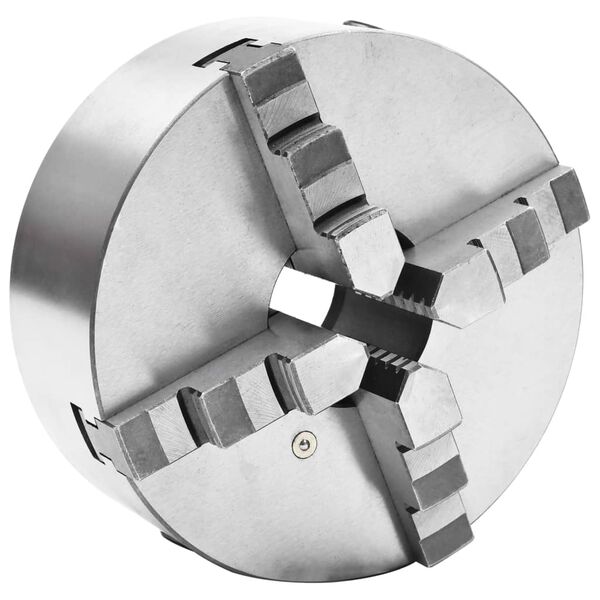

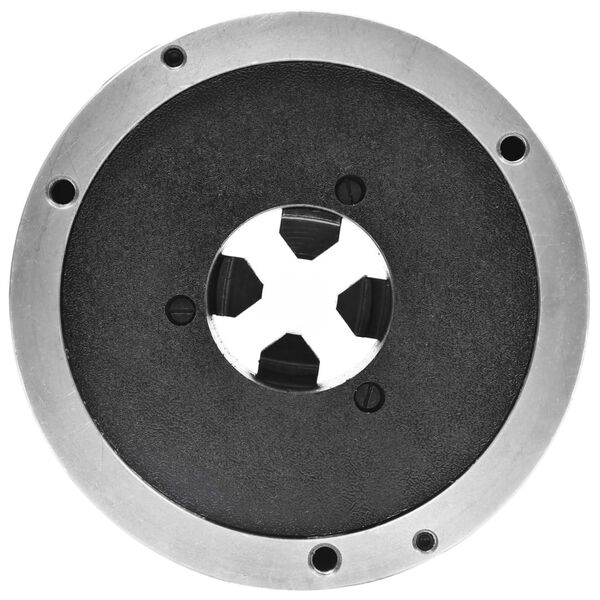

vidaXL 4 Jaw Self-Centering Lathe Chuck 200 mm Steel

Description

This self-centring 4 jaw lathe chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also proves high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material or a hexagonal material.

It is made of high-quality steel with high hardness and wear-resistance, making it strong and durable. This chuck is with 4 jaw design, self-centring, compact size and easy to use.

Specifications

Colour: Silver and black
Material: HT300 steel
Outside diameter: 200 mm
Number of jaw: 4
Passage: 65 mm
Cylindrical inner passage: 165 mm
Clamping range (internal jaw): 4 - 85 mm
Clamping range (external jaw): 65 - 200 mm
Total height: 75 mm
Maximum speed: 2000 R/min
3 x M10 holes
Run out: 0.08
Net weight: 15.5 kg
Delivery contains:
1 x Lathe chuck
4 x Jaw
1 x Chuck key
EAN:8720286025253
SKU:146712
Brand:vidaXL
