vidaXL 4 Jaw Wood Chuck with M33 Connection Steel Black 150x63 mm

Description

This wood chuck can perform a wide range of tasks, expanding the possibilities of making your original designs. It also provides high clamping accuracy on a wide range of surfaces, such as a fixed solid or hollow circle material, a triangular material, or a hexagonal material.

This wood lathe chuck is made of steel, making it strong and durable. Featuring 4 jaw design, the chuck is easy to use and fits a wide range of wood chucking lathe.

Specifications

Colour: Black
Material: Steel
Overall dimensions: 150 x 63 mm (Diameter x H)
Number of jaws: 4
Not self centering
Thread: M 33 with pitch 3.5
The smallest diameter can be clamped about 15x15 mm
Clamping range (internal jaw): 15 - 138 mm
Clamping range (external jaw): 52 - 165 mm
Thread depth: 39 mm
Complete depth without jaws: 39 mm
Complete depth with jaws: 63 mm
Maximum speed: 3000 R/min
Net weight: 2.48 kg
Assembly required: Yes
Delivery contains:
1 x Chuck

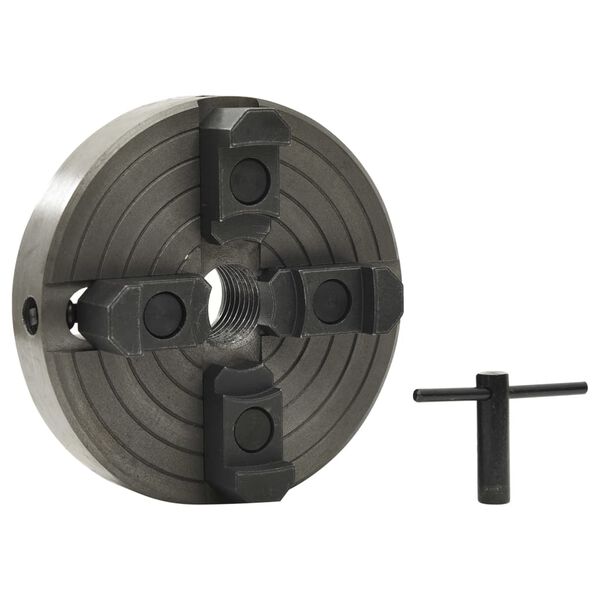

1 x Spanner
EAN:8720286090596
SKU:147832
Brand:vidaXL
